Hello World Extension

This is a tutorial for making a Hello World Add-on as a MailExtension.

This tutorial is for building an extension for Thunderbird 66+ which is currently only available as a beta release.

Thunderstorm

This tutorial is based off of code that can be found, along with other tutorials and resources, in the Thunderstorm repository maintained by Thunderbird contributor Christopher Leidigh.

Writing the Extension

Create a directory for your extension and navigate to it.

mkdir hello-world
cd hello-world

manifest.json

Extensions require a manifest.json file that tells Thunderbird basic information about the add-on.

Your manifest.json file should look like this:

manifest.json
{
"manifest_version": 2,
"name": "Hello World",
"description": "Your basic Hello World extension!",
"version": "1.0",
"author": "[Your Name Here]",
"applications": {
"gecko": {
"id": "helloworld@yoursite.com",
"strict_min_version": "66.0"
}
},
"browser_action": {
"default_popup": "popup.html",
"default_title": "Hello World",
"default_icon": "images/internet-32px.png"
},
"permissions": [
],
"icons": {
"64": "images/internet.png",
"32": "images/internet-32px.png",
"16": "images/internet-16px.png"
},
}

Understanding the structure of manifest.json

At a glance there may appear to be a lot going on in this file, but it's actually pretty straightforward.

You can ignore manifest_version as it is mandatory and is simply meant to signal compatibility to Thunderbird.

name should be the name of your add-on, description should be a brief description of what your add-on does, version is a number that denotes which version of your add-on you are working on, and author should be your name or company.

What you need to know about the applications portion of the manifest.json:

  • id serves as a unique indentifier for your add-on, it is common practice to put the add-on name @ your website.

  • strict_min_versionshould be the lowest version of Thunderbird you are targeting. Make sure to test your add-on with the version you put there to ensure it works properly.

browser_action specifies the toolbar button. We're supplying three pieces of information here:

  • default_icon is mandatory, and points to the icon for the button.

  • default_title is optional, and will be shown in a tooltip.

  • default_popup is used if you want a popup to be shown when the user clicks the button. We do, so we've included this key and made it point to an HTML file included with the extension.

icons tells Thunderbird where the icons we are using for our add-on are. You can grab the icons we use for this example from the Thunderstorm repo. Make sure to create an images directory in the hello-world project folder for them.

Alternatively, you could supply an SVG file here, and it will be scaled correctly.

Our add-on is pretty simple, it just brings up an html page in a new tab in Thunderbird. Here we are going to create the page that is pulled up. Let's create popup.html in the hello-world directory alongside manifest.json.

popup.html
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>Hello World</title>
<link rel="stylesheet" type="text/css" media="screen" href="popup.css">
<script src="scripts/popup.js"></script>
</head>
<body>
<div class="popup-page">
Hello, World!
</div>
</body>
</html>

Now we want to make the css file referenced in our html file. We'll call it popup.css. This is just for decoration of the page, we'll put it in the same folder.

popup.css
.popup-page {
font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;
font-weight: bold;
width: 100%;
height: 60px;
padding: 30px;
}

At this point if you were to install the add-on it would perform its function - but we're going to add in another layer to things before we're done. We're going to create a folder called scripts in the hello-world directory, and create a file called popup.js within that scripts folder.

In popup.js we will put the following code:

popup.js
// Below is what we'll log to the console.
console.log('Hello, World! - from popup.js');

What our little script does is sends a message to the console each time we click on our add-on. We'll take a look at that in a moment when we try out our add-on. The first line is just a comment so we can remember what our code is doing.

Testing the Extension

First, let's double-check that we have all the files in the right places:

hello-world/
├── manifest.json
├── popup.html
├── popup.css
├── scripts/
└── popup.js
├── images/
├── internet.png
├── internet-32px.png
└── internet-16px.png

Installing

To install the add-on we created we are going to load it temporarily. Let's start by opening the Add-ons Manager:

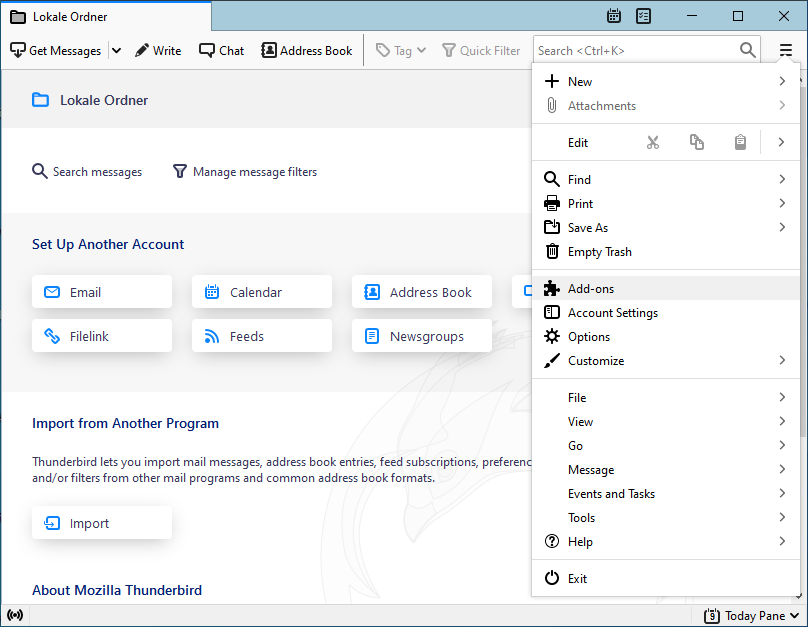

Find "Add-ons" in the App Menu

This will open up the Add-ons Manager, make sure "Extensions" is selected on the left hand side and click the gear to select "Debug Add-ons".

Select Debug Add-ons from the Menu.

Select "Load Temporary Add-on" and then you can choose any file from within our hello-world project folder.

Click "Load Temporary Add-on"

This should install the Add-on for this session only:

The "Hello World" add-on should show up in Temporary Extensions.

Trying it Out

Now we can give our new add-on a whirl. Hit the "Debug" option under the add-on's listing (pictured above), this will bring up a console - we'll want that to see the results of the javascript console.log command we put in popup.js.

When you click on Debug, if you are prompted with a warning telling you there is a connection to your computer from 127.0.0.1 - that is your computer and it is fine. Hit OK and the Developer Tools window with the console will appear.

Make sure the "Console" tab is selected in the Developer Tools window. Click the "Persist Logs" checkbox in the top right-hand corner of the Developer Tools so that we can see the output from the add-on after we've interacted with it (otherwise it only shows output as it is happening).

Hello, World!

Head to the home tab and click on the add-on's icon in the top right-hand corner to see a pop up with your message "Hello, World!"

Click the Hello World Add-on and see the popup!

Now if you look at the Developer Tools window, you should see something like the following in the console:

"Hello World - from popup.js"

What's Next

Try playing around with the popup.js script, changing the message or, if you are familiar with JavaScript - doing more interesting things. You can also change the content of the pop up window via popup.html and popup.css.

If you want to do something more complicated, check out the MailExtension APIs via its documentation:
